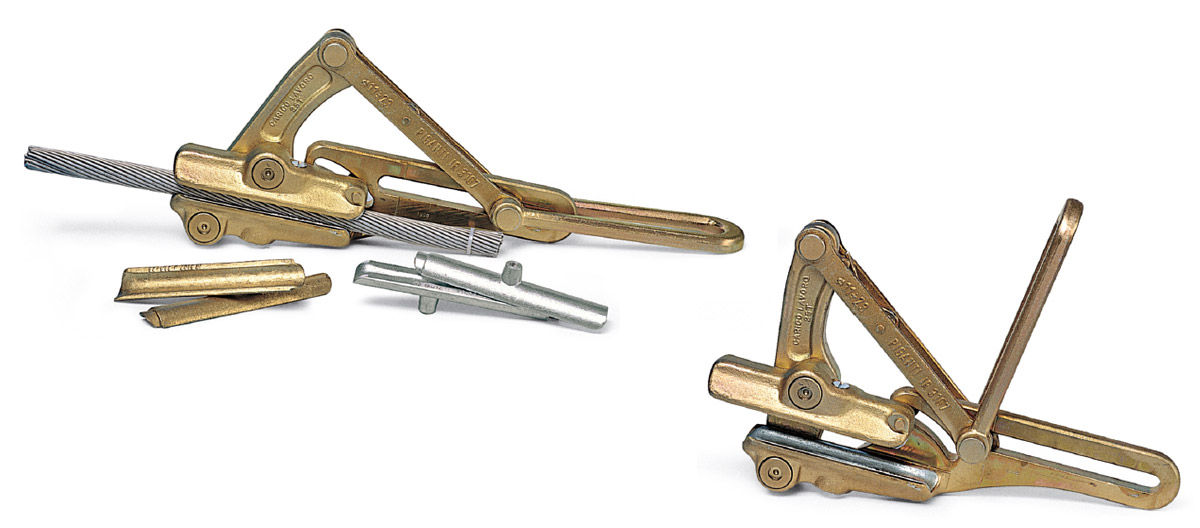

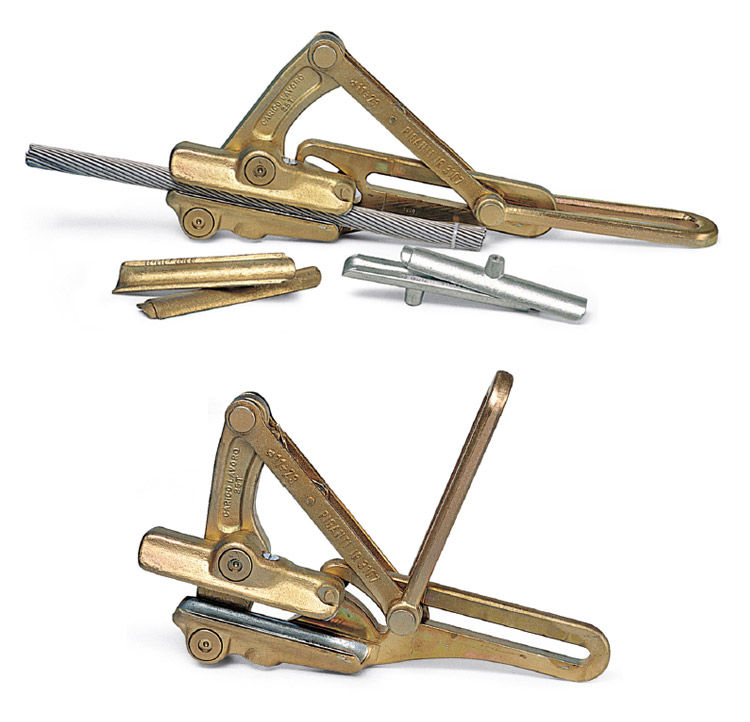

Self-gripping clamp IR 3107

Automatic self-gripping clamp

Suitable for aluminium, A.C.S.R., steel earth wire, anti-twisting rope and copper conductors from 6 to 23 mm. Made of high tensile alloy steel, hot forged, heat-treated, precision machined and zinc-plated with a complete range of interchangeable liners.

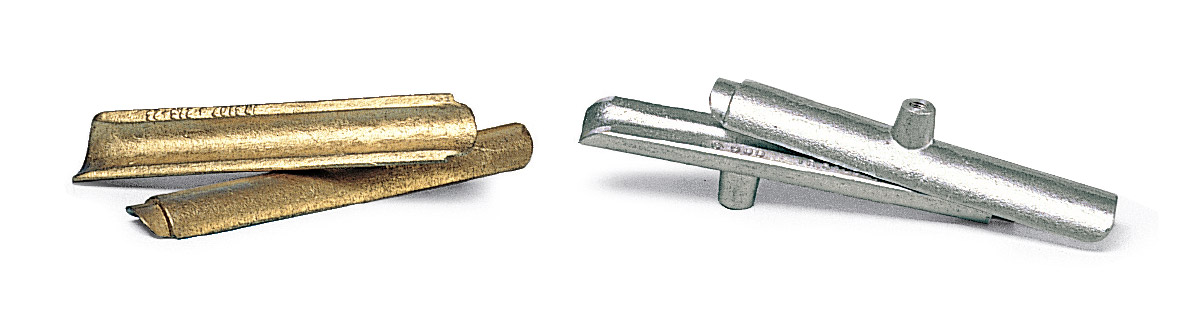

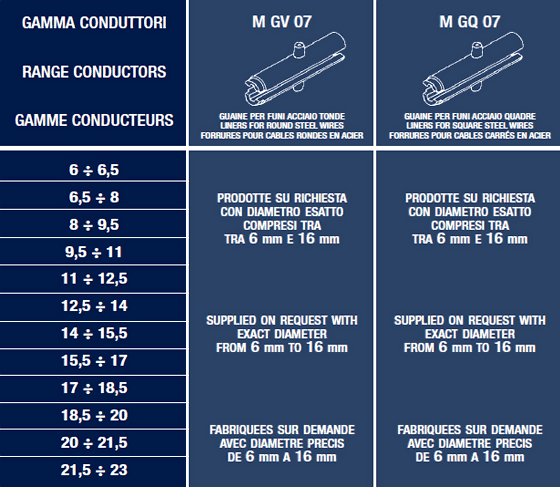

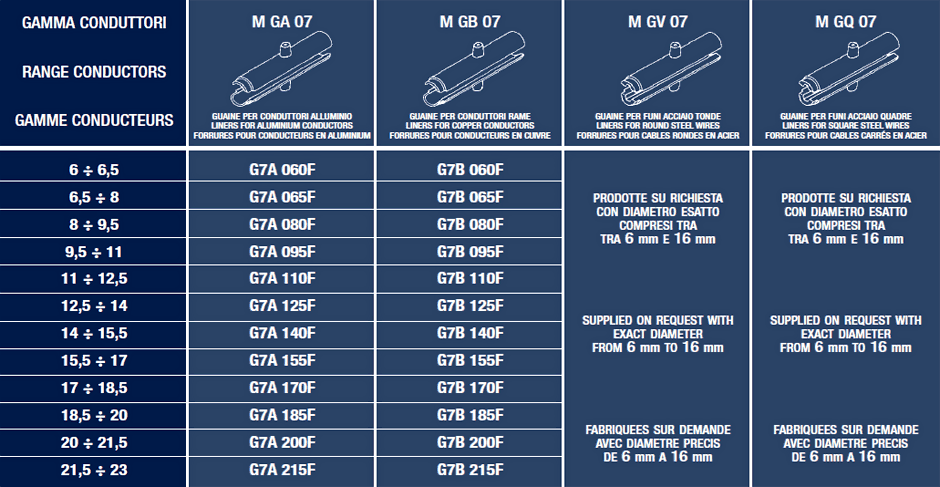

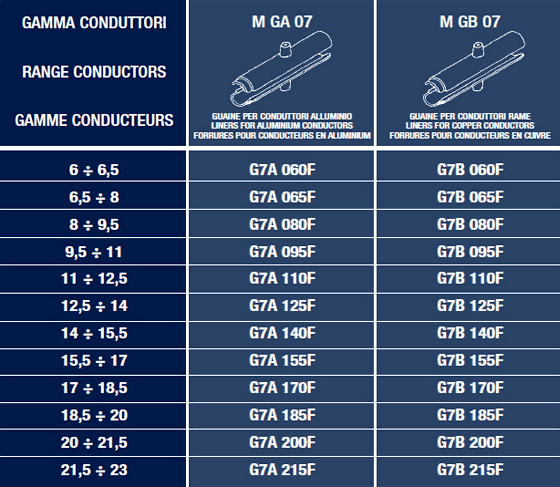

The liners are available in aluminium for aluminium or aluminium/steel conductors and bronze for copper conductors, steel antitwisting rope and steel earth wire.

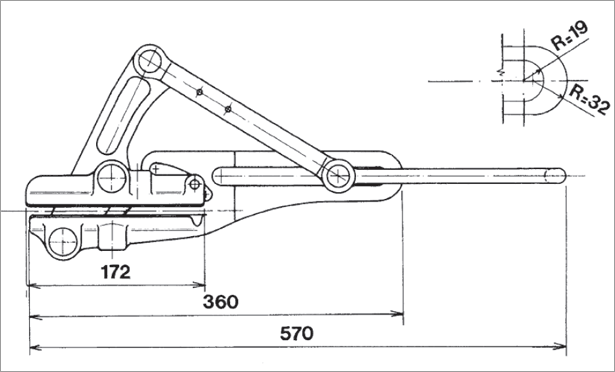

Specifications
