Self-gripping clamps > IR 3109

Self-gripping clamp IR 3109


Automatic self-gripping clamp

Suitable for steel rope and copper conductors from 2,5 mm to 15 mm. Made of high tensile alloy steel, hot forged, heat-treated, precision machined and zinc-plated.

Specifications

Maximum safety load 19,6 kN
Minimum breaking load 49 kN
Weight 1,5 kg

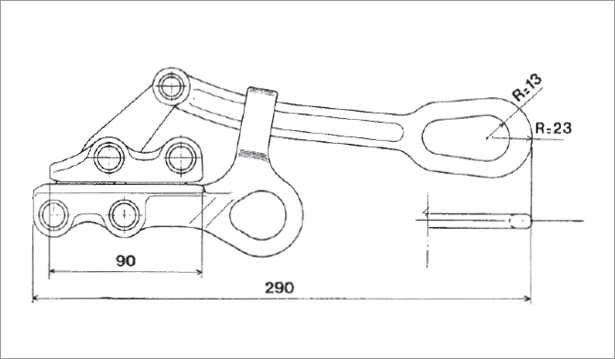

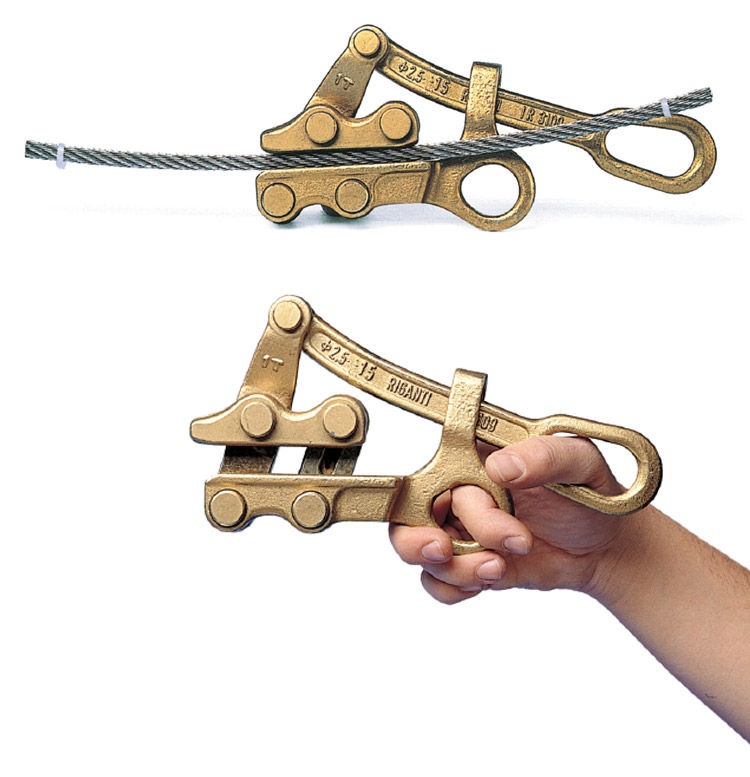

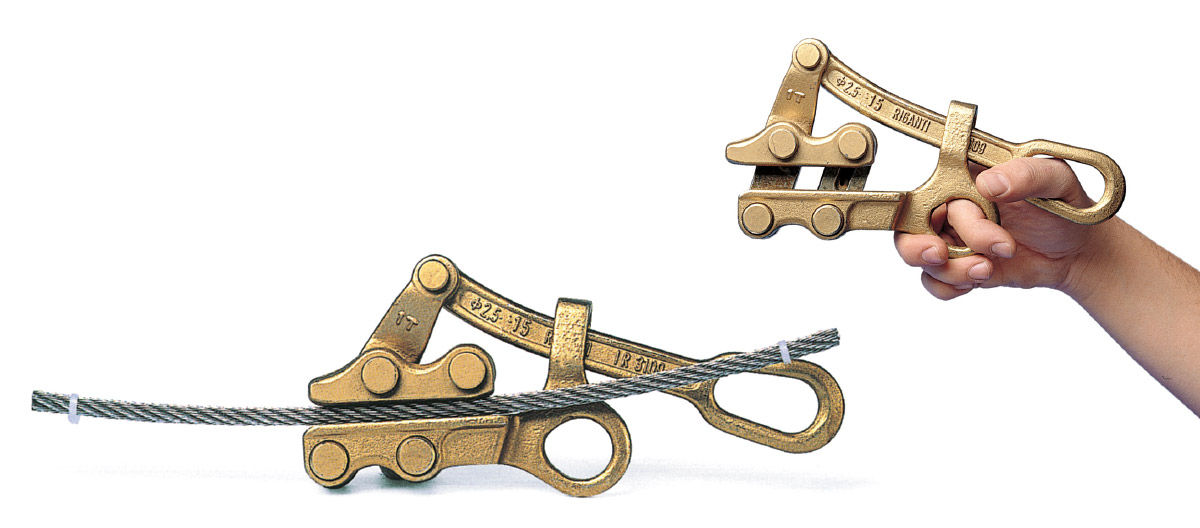

Self-gripping clamp IR 3109 Self-gripping clamp IR 3109
