Hydraulic presses > IR P 100

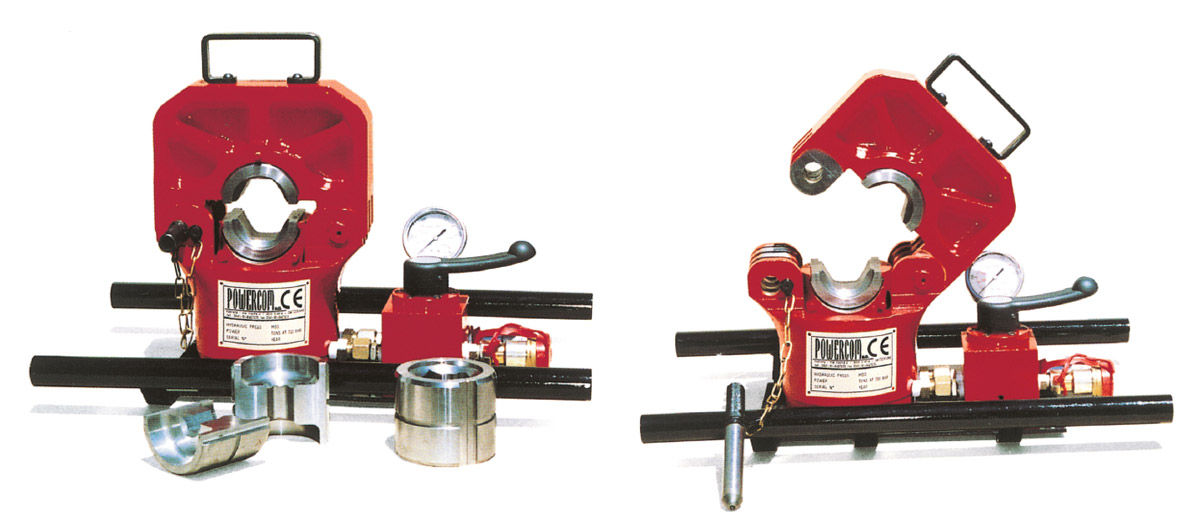

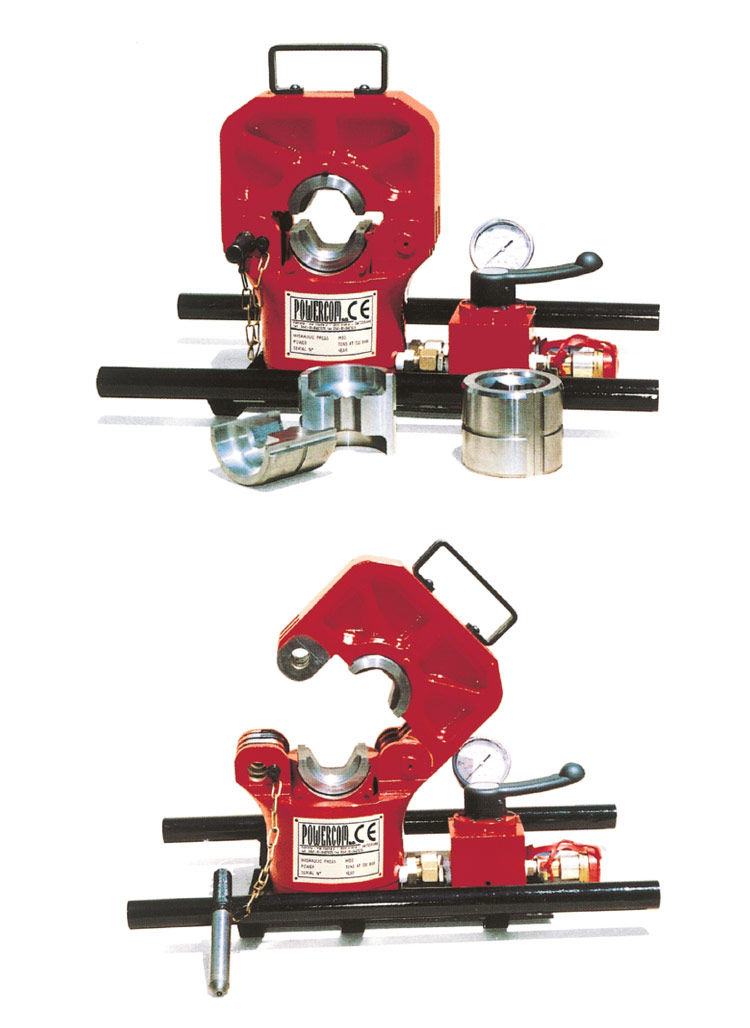

Hydraulic press IR P 100

Hydraulic press

Hydraulic Press of A 100 t is the best press on the market in terms of lightness. Made of high tensile alloy steel it is hot forged and suitable for compression of joints on conductor and steel ropes for electric lines (medium and high voltage). Excellent weight/power ratio (3,1 t/kg), easy to operate on suspension working platforms and steel towers. Maximum hexagonal key of 57 mm. It is fitted with motorized or hand pump, control valve, pressure gauge and quick release couplings.

Specifications

Max pressing force A tons 100
working pressure max 700 bar
Press weight kg 32
Weight/Power ratio ton/kg 3,1
Die weight kg 1,5
Max hexagon mm 57
Max stroke mm 26
Case cm 50x70x62H

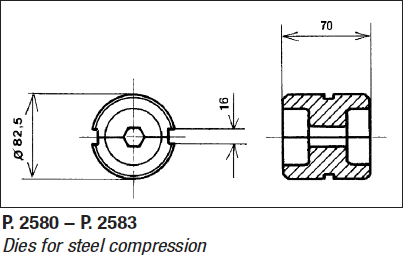

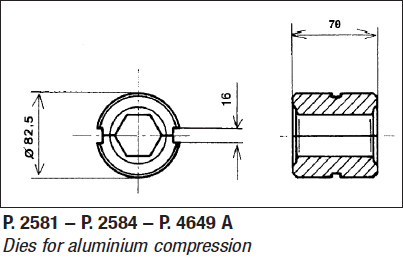

Dies and tools IR P 100

Dies are made of high tensile alloy steel, hot forged, heat-treated and precision machined. Maximum hexagon 57 mm.
