Hydraulic presses > IR P 200

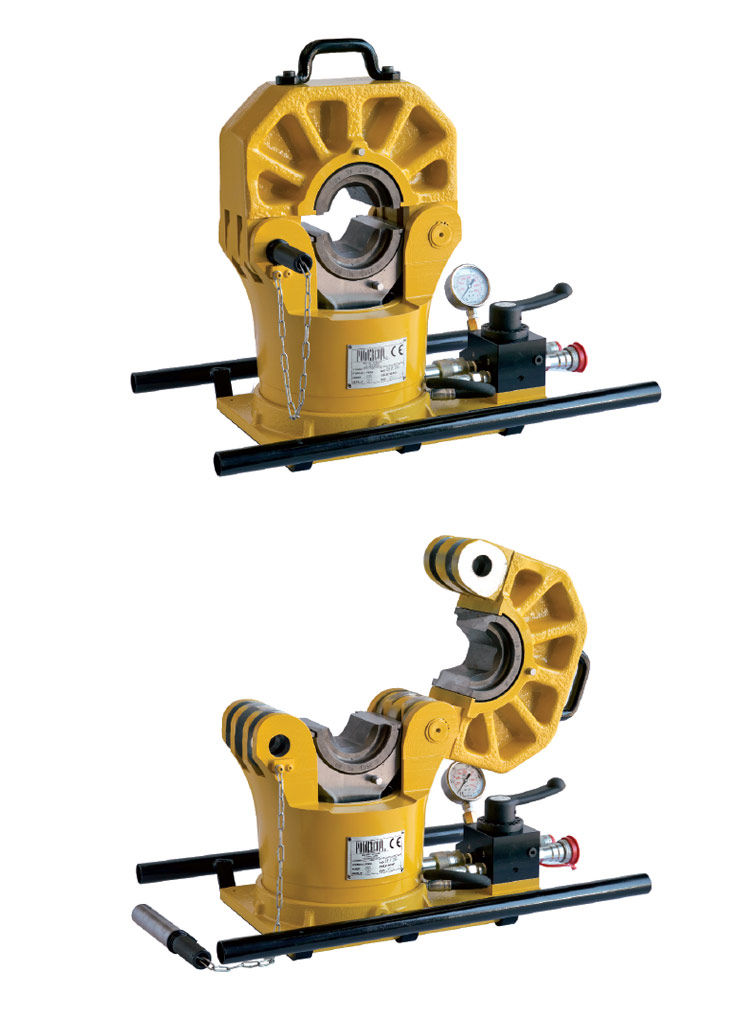

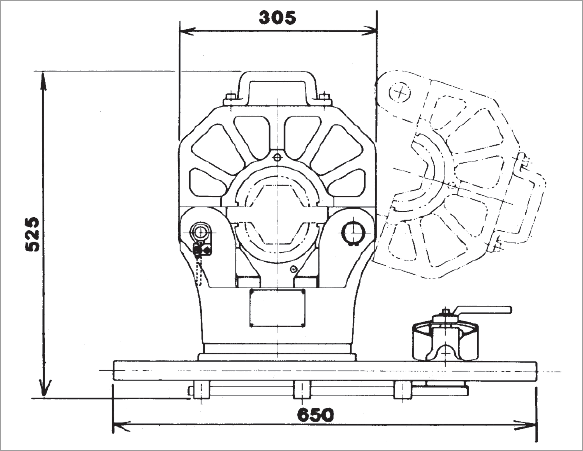

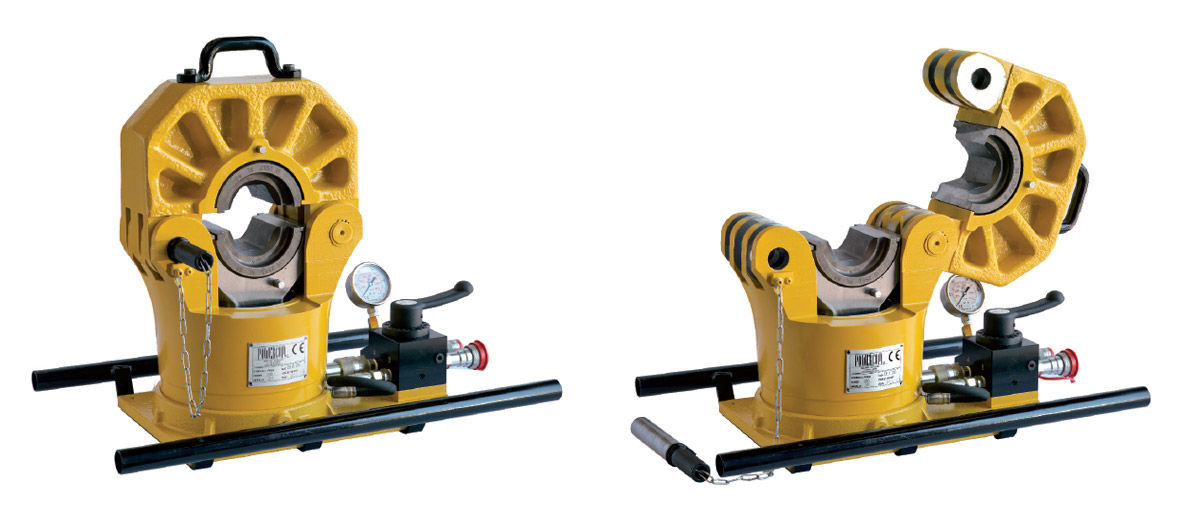

Hydraulic press IR P 200

Hydraulic press

Hydraulic Press of 200 t compressive capacity, suitable for compression of joints on conductors and steel ropes for high voltage electric lines. Dies allow to get considerable crimp widths reducing the number of pressings made on the same joint. Hexagon key (max 92 mm) enables to use even conductors with large diameter. Hydraulic press operated by motorized or hand pump, complete with control valve, pressure gauge, quick release couplings and wooden case for easy transport.


Max pressing force 200 tons (2000 kN)
working pressure max 700 bar
Press weight kg 109
Weight/Power ratio ton/kg 2
Die weight kg 6
Max hexagon mm 92
Max stroke mm 32,5
Case cm 50x70x75H

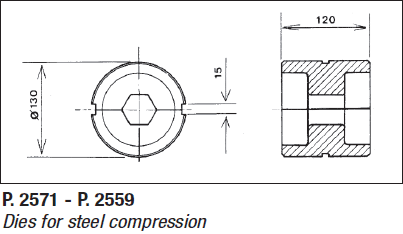

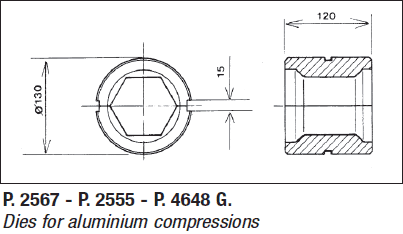

Dies and tools IR P 160/200

Dies items are made of high tensile alloy steel, hot forged, heat-treated and precision machined. Dies maximum hexagon 92 mm.
