Hydraulic presses > IR P 60

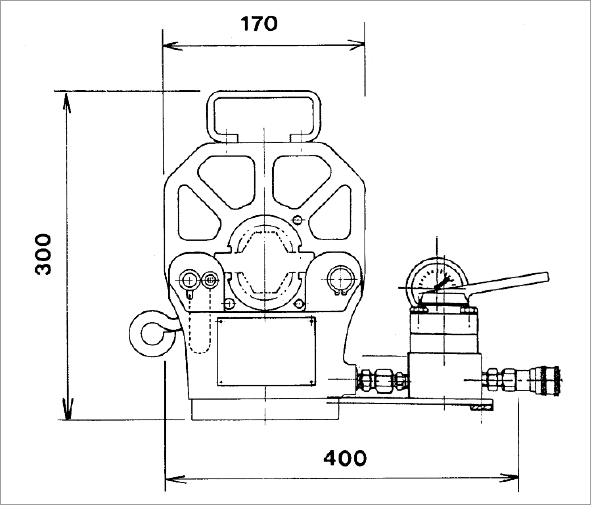

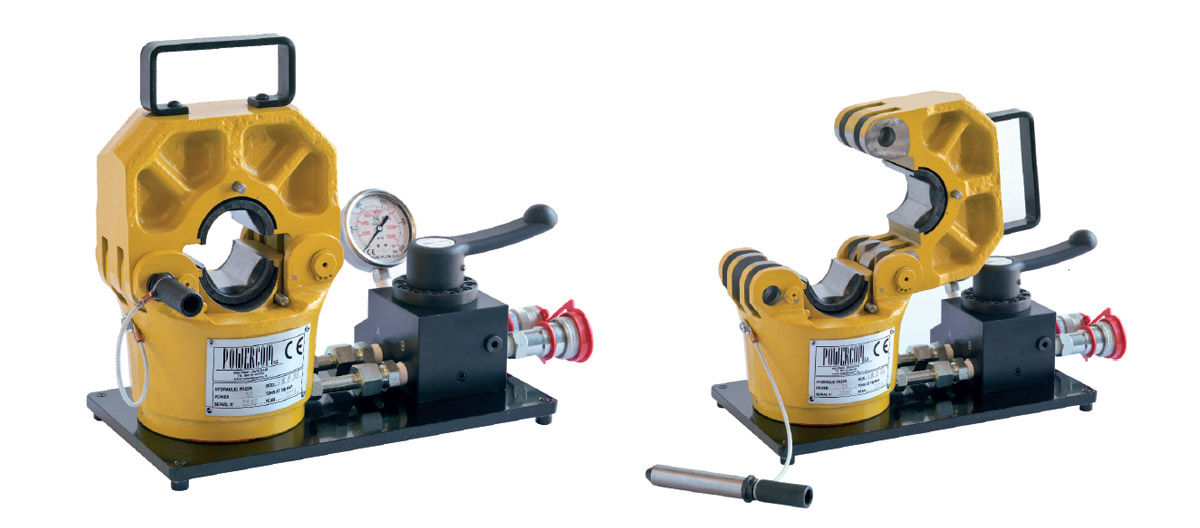

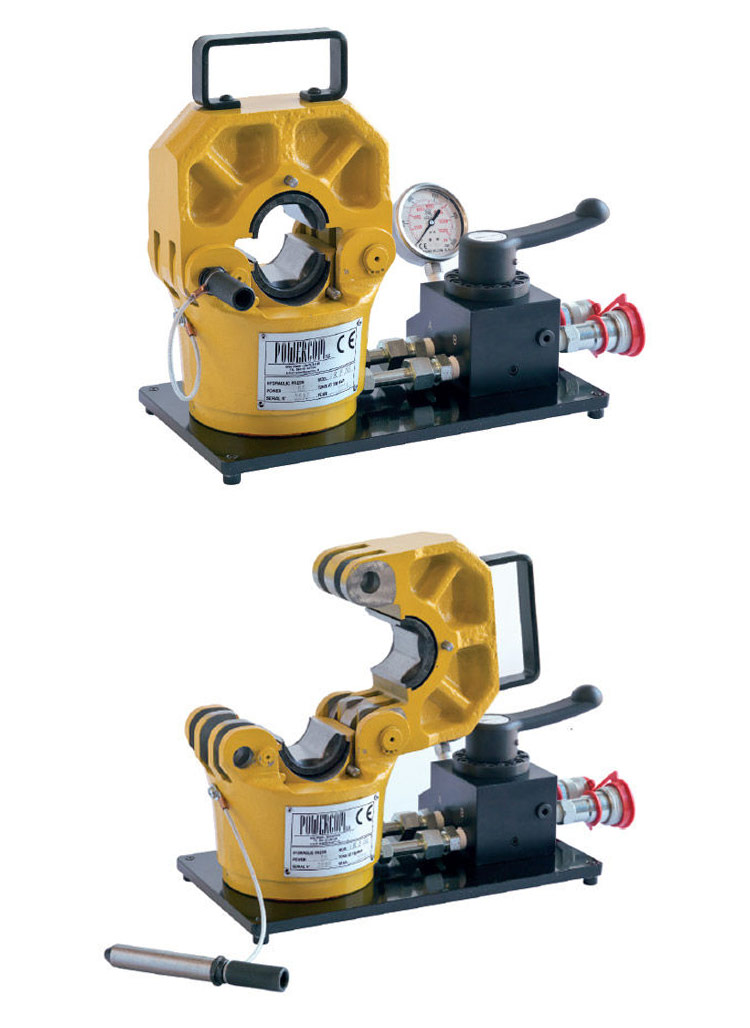

Hydraulic press IR P 60
Hydraulic press
Hydraulic Press of 60 t compressive capacity, suitable for compression of joints on conductors and steel ropes for electric lines (medium and high voltage). Excellent weight/power ratio (2,5 t/kg), easy to operate on suspension working platforms and steel towers thanks to the specific cover fitted on the press body. Maximum hexagonal key of 44 mm allows pressing of an electric cable of 31,5 mm diameter. It is fitted with motorized or hand pump, control valve, pressure gauge and quick release couplings.
Specifications
| Max pressing force | 60 tons (600 kN) working pressure max 700 bar |
| Press weight | kg 24 |
| Weight/Power ratio | ton/kg 2,5 |
| Die weight | kg 1 |
| Max hexagon | mm 44 |
| Max stroke | mm 18 |
| Case | cm 45x31x35H |
|

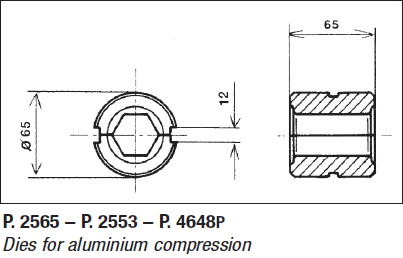

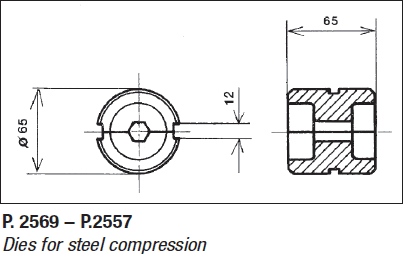

Dies and tools IR P 55/60
Dies are made of high tensile alloy steel, hot forged, heat-treated and precision machined. Maximum hexagon 44 mm.
