Hydraulic presses > IR P 65

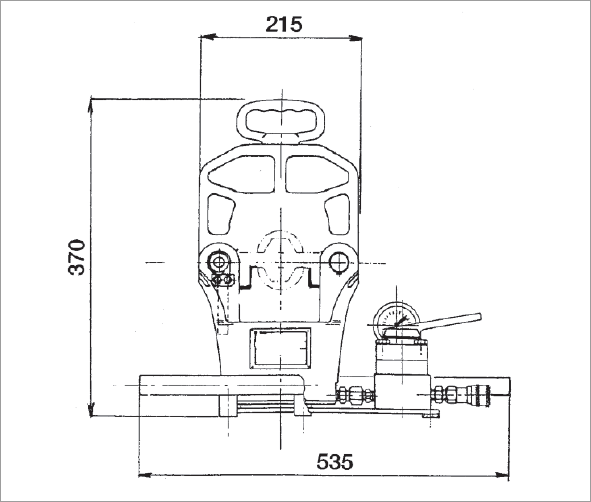

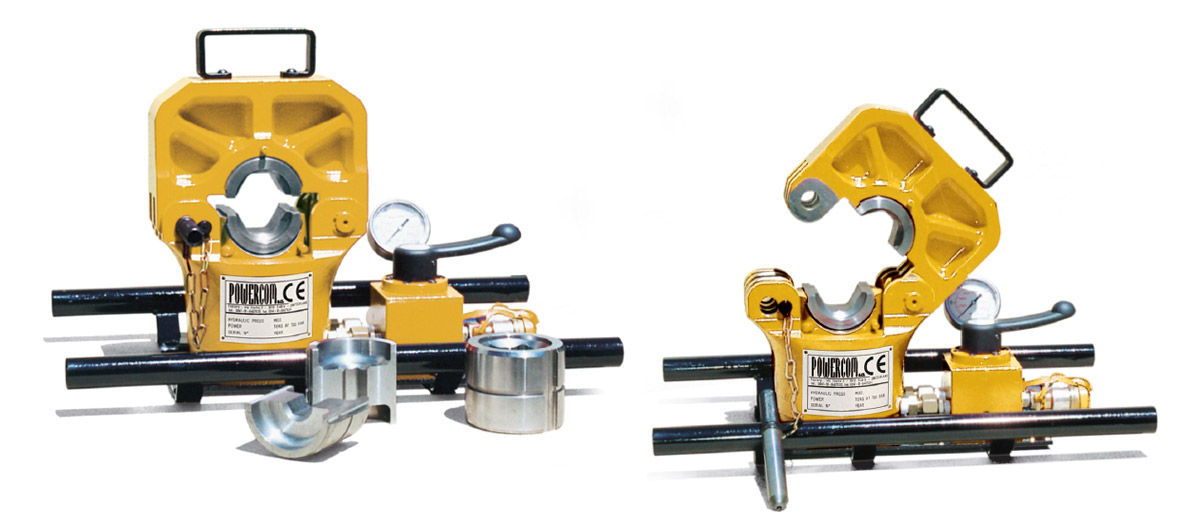

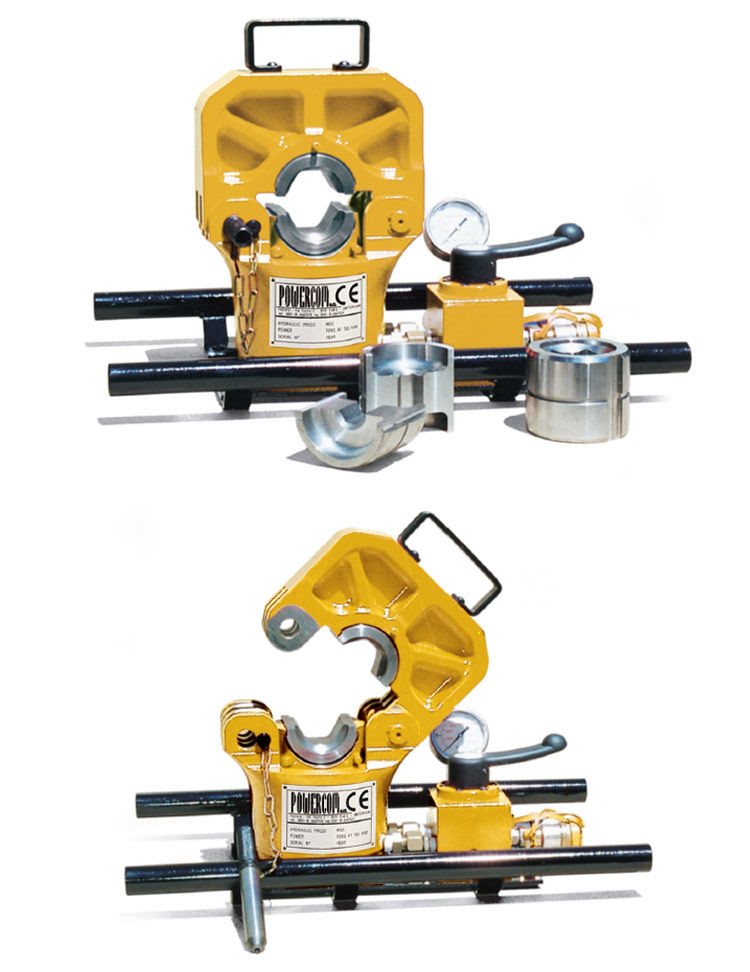

Hydraulic press IR P 65

Hydraulic press

Hydraulic Press of 65 t compressive capacity, suitable for compression of joints on conductors and steel ropes for electric lines (medium and high voltage). Excellent weight/power ratio (1,9 t/kg), easy to operate on suspension working platforms and steel towers. Maximum hexagonal key of 57 mm. It is fitted with motorized or hand pump, control valve, pressure gauge and quick release couplings.


Max pressing force 65 tons (650 kN)
working pressure max 700 bar
Press weight kg 33
Weight/Power ratio ton/kg 1,9
Die weight kg 1,5
Max hexagon mm 57
Max stroke mm 26
Case cm 50x70x62H

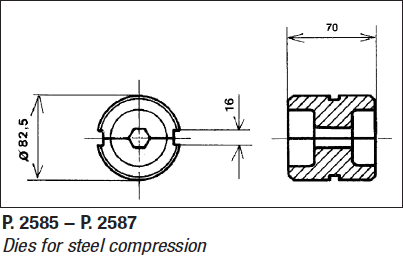

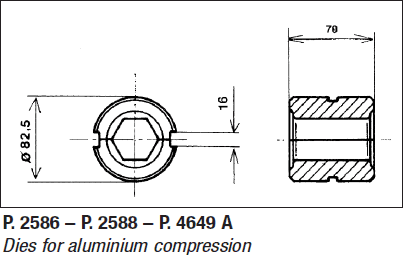

Dies and tools IR P 65

Dies are made of high tensile alloy steel, hot forged, heat-treated and precision machined. Maximum hexagon 57 mm.
